Lyp seriem-Circularis electrica Iungo Manufacturer
● Haec series combines ad commoda et functions of y2 series et P-genus electrica connectors.
● est Y2 Bayonet Connection structuram et adoptat contactus Ordinatio P-Genus COPULATOR.
● est habet proprietates parva magnitudine, lux pondus, wide contactus genus spectro et velox separationem.
● et Lyn series testa est processionaliter per altum -strength aluminium mixturis materiae.
● Lyn series potest exchanged cum YP series. Est idealis replacement uber ad vetus -fashioned "P" Type iungo.
● late applicabiles linea connexionem inter electrica apparatu et variis instrumentis instrumentis.
Main Technical Characteres
Environmental euismod
-Working temperatus :: Welding Type -55 ℃ ~ CXXV ℃, Crimping Type -55 ℃ ~ CC ℃
-Relative Umor: XCV% ad XL ℃
Altitude -working: 20,000m supra mare gradu
-Vibration: Frequency 10hz ~ 2000Hz acceleratione 147m / S² (YP Series) 196m / S² (LYP Series)
-Impact, acceleratio 490m / s²
-Ia macula: Aeris pressura resistentia ≥0.2MPa (solum signatum bases)
Electrica proprietatibus
-Contact resistentia et rated current
| Contact Specifications (mm) | Contact Repugnantia (Mω) | Rated current (a) |
| Φ0.8 | ≤8 | 3 |
| Φ.0 | 5 | 5 |
| Φ1.5 | ≤3 | 10 |
| Φ2.5 | ≤1 | 25 |
| Φ.5 (YP Series Tantum) | ≤1 | 50 |
| Φ5.5 (YP series tantum) | ≤1 | 100 |

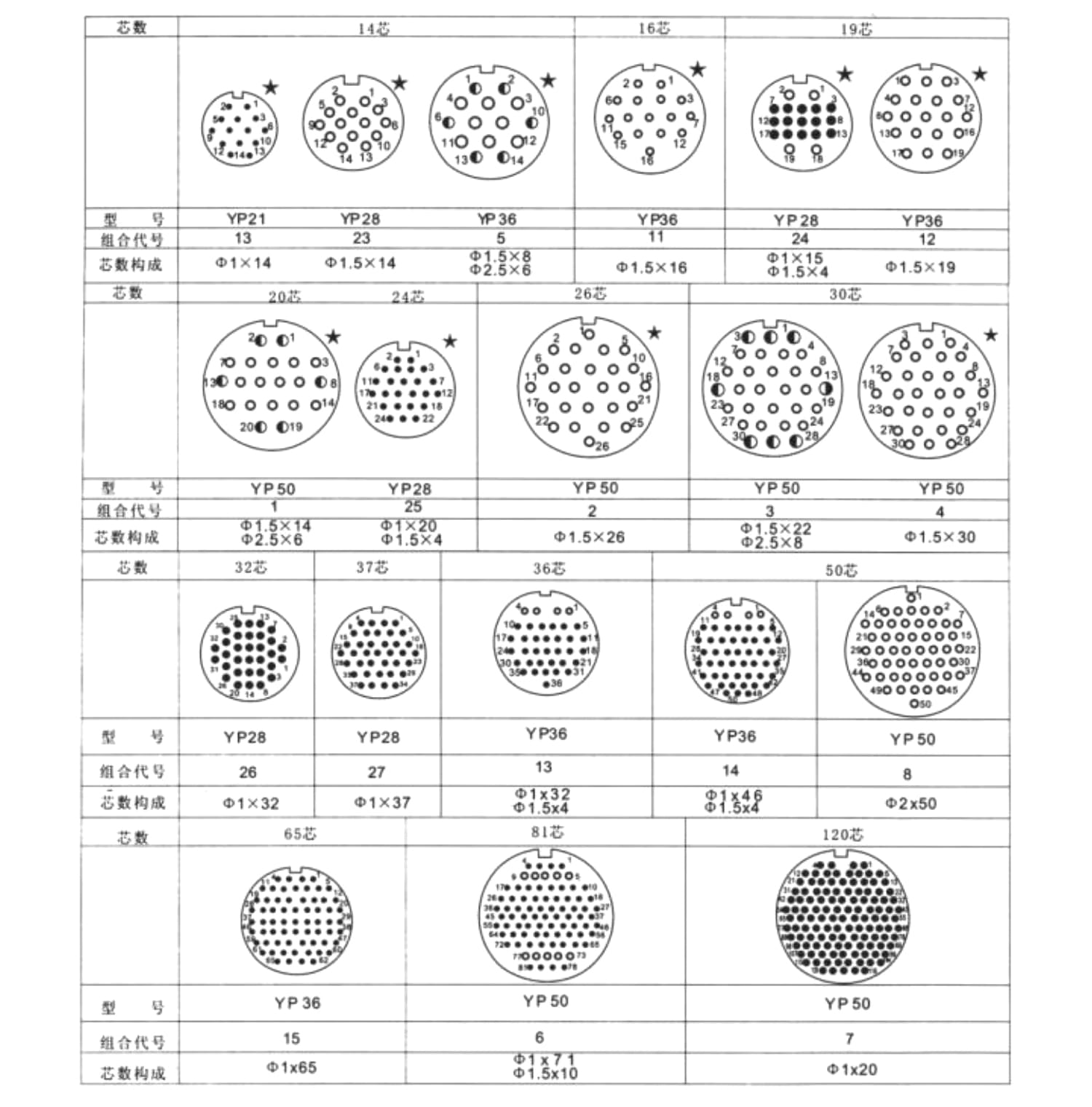

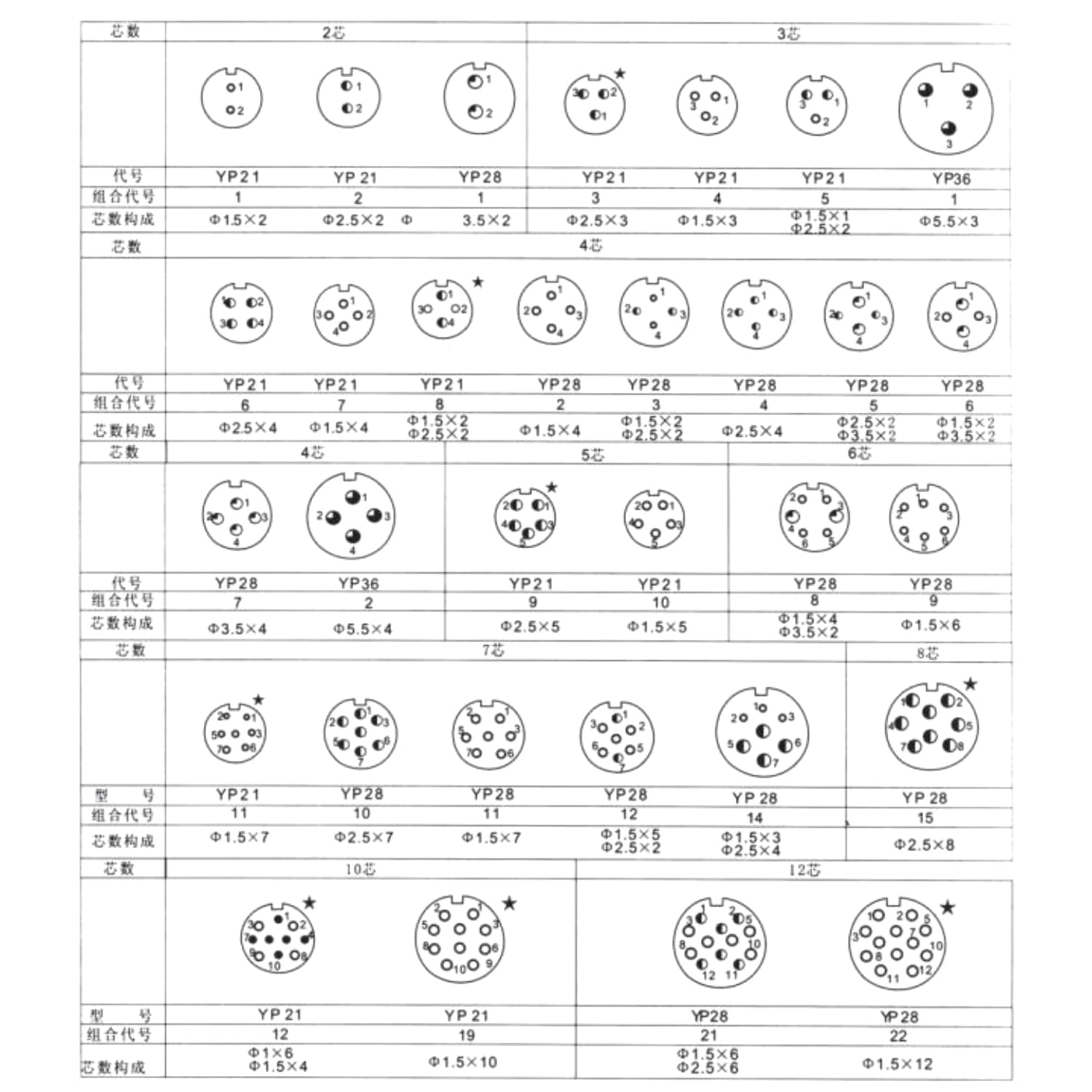

-Contacts et resistere voltage (Lyn series tantum)
| Numero contactus | Resistere voltage (V) |
| 3,4,5,7,10,14,19 | 1500 |
| 24,32,36,37,50,65,81,36,37,5,65,81,81,120 | 1000 |
-Rated voltage, resistere voltage et initatione resistendum
| Operantes environment | Rating voltage (V) | Resistere voltage (V) | Nulla resistitur (Mω) |
| Normalis temperatus et pressura | 500 | 1500 | ≥3000 |
| Umida et calidus | 500 | DCCL (YP Series) MCXXV (LYP Series) | 20 |
| Caliditas | 500 |
| ≥500 |
| Humilis pressura conditionibus 4.39kpa | 250 | DCCL (YP Series) CCCL (LYP Series) |
|
Nota, cum numerus Contactus est XXXII, XXXVII, LXV, LXXXI, aut CXX, resistere voltage est 1000v in normalis temperatus et pressura condiciones.
- torcular-apta pinhole axial onus (ad National Military Latin GJB101A)
| Contact Diameter (mm) | Minimum Axial Lond (N) |
| 1.0 | 50 |
| 1.5 | 60 |
| 2.5 | 70 |
-Contact Crimp dolium interiore diameter et accommodare filum crucem-sectioni
| Contact Diameter (mm) | Type | Crimp dolio interiorem diameter (φ) | Adapted Conductor crucis sectionem (MM²) |
| 1.00 | A | 0.8 | 0.2-0.4 |
| B | 1.2 | 0,5 ~ 0.8 | |
| C | 1.6 | I ~ 1.5 | |
| 1.5 | A | 0.8 | 0,2 ~ 0.4 |
| B | 1.2 | 0,5 ~ 0.8 | |
| C | 1.6 | I ~ 1.5 | |
| D | 2.0 | > 1.5 | |
| 2.5 | A | 0.8 | 0,2 ~ 0.4 |
| B | 1.2 | 0,5 ~ 0.8 | |
| C | 1.6 | > I ~ 1.5 | |
| D | 2.0 | > 1.5 |
Mechanica proprietatibus
-Casing: Aluminium Alloy Die-Missing (YP Series) High-Fortitudo Aluminium Alloy Material (LYP Series)
-Plating: Senena Nickel plating, RAMULUS pictura (YP Series), Anodizing coloring, Nickel plating (LYP Series)
-Insulator: calor, repugnans thermoplastic aut thermoset materiales
-Contacts: aeris alleo materiam cum aurum et argentum coating
-Mehanical Vita: D times
